Erimo 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| おじか [Ojika], 10.2000- えりも [Erimo] | PL02 | Mitsui, Tamano | 28.9.1990 | 23.4.1991 | 31.10.1991 | deleted 1.2017, to Malaysia (Pekan) | |
| くだか [Kudaka] | PL03 | Hakodate DD | 9.9.1993 | 10.5.1994 | 25.10.1994 | in service (2019) | |
| さつま [Satsuma], 1999- やひこ [Yahiko] | PL04 | Sumitomo, Uraga | 21.9.1994 | 29.5.1995 | 26.10.1995 | in service (2019) | |
| はかた [Hakata], 12.2008- でじま [Dejima] | PL05 | Ishikawajima, Tokyo | 22.10.1997 | 6.7.1998 | 26.11.1998 | in service (2019) | |
| でじま [Dejima], 1.2005- くりこま [Kurikoma] | PL06 | Mitsui, Tamano | 4.9.1998 | 28.6.1999 | 29.10.1999 | in service (2019) | |
| さつま [Satsuma] | PL07 | Kawasaki, Kobe | 1.9.1998 | 3.6.1999 | 29.10.1999 | in service (2019) | |
| もとぶ [Motobu], 1.2009- とさ [Tosa] | PL08 | Sasebo HI | 8.9.1999 | 5.6.2000 | 31.10.2000 | in service (2019) |
|
Displacement standard, t |
02-04: 1883 05-08: 1930 |
|
Displacement normal, t |
02-04: 2006 05-08: 2055 |
|
Length, m |
02-04: 87.0 pp 91.4 oa 05-08: 93.5 |
|
Breadth, m |
02-04: 11.0 05-08: 11.5 |
|
Draught, m |
02-04: 3.50 05-08: 4.00 |
|
No of shafts |
2 |
|
Machinery |
2 Fuji 8S40B diesels |
|
Power, h. p. |
7000 |
|
Max speed, kts |
20 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
8000(14) |
|
Armament |
02: 1 x 3 - 20/76 JM-61-MB Sea Vulcan, helicopter deck 03-08: 1 x 1 - 35/90 type 87, 1 x 3 - 20/76 JM-61-MB Sea Vulcan, helicopter deck |
|
Electronic equipment |
2x JMA 1596 radars |
|
Complement |
38 |
Project history: Have a cargo hold under the helicopter pad. All have a computerized rescue data system, special display room, helicopter platform and fin stabilization. There is a stern dock for an "unsinkable" rescue craft.
Modernizations: None.
Naval service: No significant events.

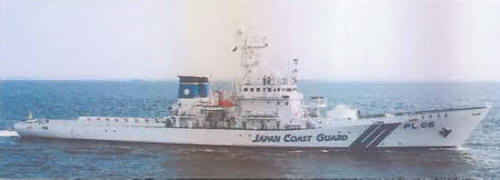

Kurikoma 2008
