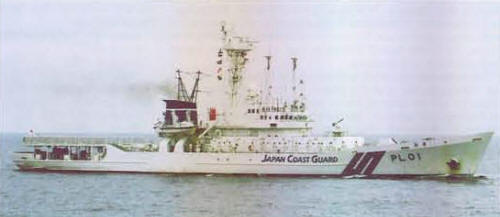

Oki 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| のじま [Nojima], 11.1997- おき [Oki] | PL01 | Ishikawajima, Tokyo | 16.8.1988 | 30.5.1989 | 21.9.1989 | deleted 1.2017, to Malaysia (Arau) |
|
Displacement standard, t |
993 |
|
Displacement normal, t |
1500 |
|
Length, m |
87.0 |
|
Breadth, m |
10.5 |
|
Draught, m |
3.50 |
|
No of shafts |
2 |
|
Machinery |
2 Fuji 8S40B diesels |
|
Power, h. p. |
7000 |
|
Max speed, kts |
20 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 8000(14) |
|
Armament |
1 x 3 - 20/76 JM-61-MB Sea Vulcan, helicopter deck |
| Electronic equipment | 2x JMA 1596 radars |
|
Complement |
39 |
Project history: Authorized under the 1986 budget. Sharp sheer to bow improves seakeeping while keeping amidships freeboard low. Unusual in having a raised helicopter deck over the fantail and a second bridge above and abaft the main pilothouse. Fin stabilizers are fitted. A rescue diving crew is assigned to the ship.
Modernizations: None.
Naval service: No significant events.
Oki 2005
