Names |
PC86 なつぎり [Natsugiri] PC87 すがなみ [Suganami] |
|
Builders |
Sumidagawa, Tokyo: PC86, 87 |
|
Commissioned |
1990: PC86, 87 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
2019: PC86, 87 |
|
Displacement standard, t |
54 |
|
Displacement full, t |
70 |
|
Length, m |
24.8 pp 27.0 oa |
|
Breadth, m |
5.60 |
|
Draught, m |
1.20 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 12V396 TB83 diesels |
|
Power, h. p. |
3000 |
|
Max speed, kts |
27.5 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
200(27) |
|
Armament |
none |
|
Electronic equipment |
radar |
|
Complement |
9 |
Project history: Put in the FY 88 budget for service in the Yokosuka area as a result of the poor performance of earlier 23m-series patrol craft during the rescue efforts after the collision of the submarine Nadashio with a fishing boat. Have a longer hull and greater propeller tip clearance to reduce pitching. Are painted white.
Modernizations: None.
Naval service: No significant events.

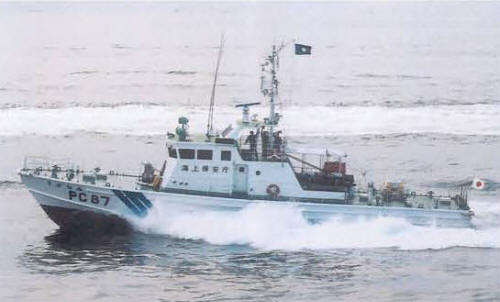

Suganami 2008
