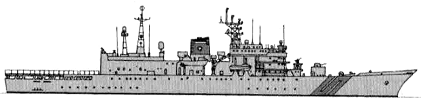

Mizuho 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| みずほ [Mizuho] | PLH21 | Mitsubishi, Nagasaki | 27.8.1984 | 5.6.1985 | 19.3.1986 | in service (2019) | |
| やしま [Yashima] | PLH22 | NKK, Tsurumi | 3.8.1987 | 20.1.1988 | 1.12.1988 | in service (2019) |
|
Displacement standard, t |
4960 |
|
Displacement normal, t |
5300 |
|
Length, m |
123.0 wl 130.0 oa |
|
Breadth, m |
15.5 |
|
Draught, m |
5.25 |
|
No of shafts |
2 |
|
Machinery |
2 IHI - SEMT-Pielstick 14PC2-5V400 diesels |
|
Power, h. p. |
18200 |
|
Max speed, kts |
23 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 8500(22) |
|
Armament |
1 x 1 - 35/90 type 87, 1 x 3 - 20/76 JM-61-MB Sea Vulcan, 2 helicopters (Bell 212) |
| Electronic equipment | 2x JMA 3000, JMA 8303 radars |
|
Complement |
130 |
Project history: Intended to operate 200nm to sea or farther, if necessary. Are the first Japan Coast Guard class to carry two helicopters. Have a flight deck-traversing system and two pairs of fin stabilizers.
Modernizations: None.
Naval service: No significant events.

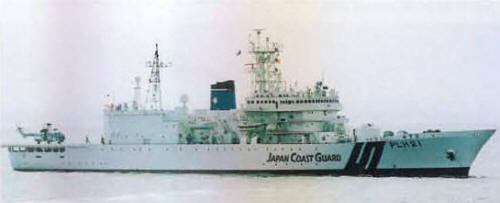

Mizuho 2005
