Miura 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| みうら [Miura] | PL22 | Sumitomo, Uraga | 12.3.1997 | 11.3.1998 | 28.10.1998 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement normal, t |
3167 |
|
Length, m |
115.2 |
|
Breadth, m |
14.0 |
|
Draught, m |
4.80 |
|
No of shafts |
2 |
|
Machinery |
2 Niigata 8MG32CLX diesels |
|
Power, h. p. |
8000 |
|
Max speed, kts |
18 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 8000(18) |
|
Armament |
1 x 3 - 20/76 JM-61-MB Sea Vulcan, helicopter deck |
| Electronic equipment | 3x JMA radars |
|
Complement |
40 + 150 passengers |
Project history: PL22 is employed primarily for Japan Coast Guard School enlisted training duties. Externally PL22 is very similar to Kojima (PL21). Has a large helicopter deck but no hangar and is equipped with FLUME-type water tank stabilization system.
Modernizations: None.
Naval service: No significant events.

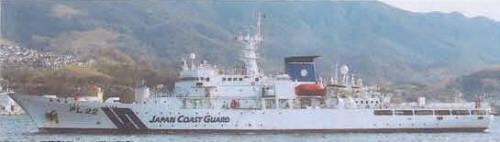

Miura 2007
