| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| まつなみ [Matsunami] | PC01 | Mitsubishi, Shimonoseki | 16.11.1994 | 22.2.1995 | in service (2019) |
|
Displacement standard, t |
165 |
|
Displacement normal, t |
204 |
|
Length, m |
35.5 wl 38.0 oa |
|
Breadth, m |
8.00 |
|
Draught, m |
2.00 |
|
No of shafts |
2 waterjets |
|
Machinery |
2 diesels |
|
Power, h. p. |
5300 |
|
Max speed, kts |
25 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
none |
|
Electronic equipment |
radar |
|
Complement |
30 |
Project history: Yacht-like craft with three-level superstructure. Built under the FY 93 program. Matsunami is configured as an oceanographic research craft for the emperor and is, in effect, the imperial yacht. Internal fittings are luxurious.
Modernizations: None.
Naval service: No significant events.

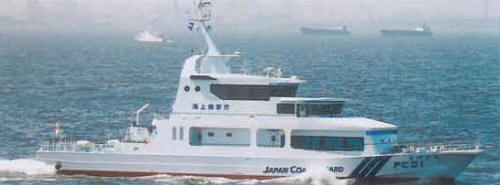

Matsunami 2007
