JAPAN MARITIME SELF-DEFENSE FORCE (JAPAN)

MARITIME SAFETY AGENCY

KUMA small patrol vessels (1951-1952)

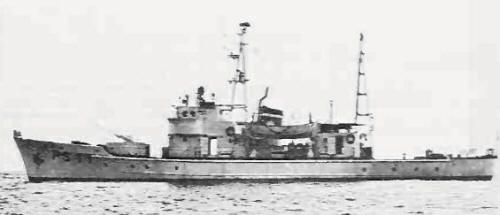

Kuma 1960

Name No Yard No Builder Laid down Launched Comp Fate
くま [Kuma] PS62, 9.1957- PS01   NKK, Tsurumi     3.1951 deleted 1.1974
ふじ [Fuji] PS63, 9.1957- PS02   NKK, Tsurumi     3.1951 deleted 1.1975
てんりゅう [Tenryu] PS64, 9.1957- PS03   NKK, Tsurumi     3.1951 deleted 2.1976
いすず [Isuzu] PS65, 9.1957- PS04   NKK, Tsurumi     6.1951 deleted 1.1976
いしかり [Ishikari] PS66, 9.1957- PS05   NKK, Tsurumi     7.1951 deleted 11.1976
さがみ [Sagami] PS67, 9.1957- PS06   NKK, Tsurumi     7.1951 deleted 11.1976
おおよど [Oyodo] PS68, 9.1957- PS07   Sumitomo HI, Uraga     8.1951 deleted 1.1976
くずりゆう [Abukuma] PS69, 9.1957- PS08   Sumitomo HI, Uraga     8.1951 deleted 2.1976
あぶくま [Kuzuryu] PS70, 9.1957- PS09   Sumitomo HI, Uraga     9.1951 deleted 1.1976
きくち [Kikuchi] PS71, 9.1957- PS10   Ishikawajima-Harima, Tokyo     8.1951 deleted 2.1976
もがみ [Mogami] PS72, 9.1957- PS11   Ishikawajima-Harima, Tokyo     9.1951 deleted 1.1978
よしの [Yoshino] PS73, 9.1957- PS12   Ishikawajima-Harima, Tokyo     10.1951 deleted 1.1977
のしろ [Noshiro] PS74, 9.1957- PS13   Mitsubishi, Shimonoseki     11.1951 deleted 12.1976
きそ [Kiso] PS75, 9.1957- PS14   Mitsubishi, Shimonoseki     11.1951 deleted 1.1977
しなの [Shinano] PS76, 9.1957- PS15   Mitsubishi, Shimonoseki     12.1951 deleted 2.1978
ちくご [Chikugo] PS77, 9.1957- PS16   Mitsubishi, Shimonoseki     1.1952 deleted 1.1978
くまの [Kumano] PS78, 9.1957- PS17   Mitsubishi, Shimonoseki     2.1952 deleted 2.1976
ながら [Nagara] PS79, 9.1957- PS18   NKK, Shimizu     3.1952 deleted 3.1977
とね [Tone] PS80, 9.1957- PS19   NKK, Shimizu     3.1952 deleted 11.1976
きたかみ [Kitakami] PS81, 9.1957- PS20   NKK, Shimizu     3.1952 deleted 1.1978



Displacement standard, t

232

Displacement full, t

267

Length, m

40.5

Breadth, m

7.00

Draught, m

2.17

No of shafts

2

Machinery

2 diesels

Power, h. p.

800

Max speed, kts

13.6

Fuel, t

diesel oil

Endurance, nm(kts)

2750(10)

Armament

none

Electronic equipment

none

Complement

31

Project history: Small patrols of 270t class. Last three belonged to improved subclass.

Modernizations: 1953, all: + 1 x 1 - 40/60 Mk 3

Naval service: No significant events.

Mogami 1970
