similar Miura 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| こじま [Kojima] | PL21 | Hitachi, Maizuru | 7.11.1991 | 10.9.1992 | 11.3.1993 | in service (2019) |
|
Displacement standard, t |
2950 |
|
Displacement normal, t |
3136 |
|
Length, m |
115.2 |
|
Breadth, m |
14.0 |
|
Draught, m |
3.53 mean 5.00 max |
|
No of shafts |
2 |
|
Machinery |
2 Niigata 8MG32CLX diesels |
|
Power, h. p. |
8000 |
|
Max speed, kts |
18 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 7000(15) |
|
Armament |
1 x 1 - 35/90 type 87, 1 x 3 - 20/76 JM-61-MB Sea Vulcan, 1 x 1 - 12.7/90, helicopter deck |
| Electronic equipment | 2x JMA 1596 radars |
|
Complement |
44 + 40 passengers |
Project history: Authorized under FY 90 budget. Used as a coast guard officer cadet training ship at Kure Academy. Officially of the "3,000-ton" class. The after deck serves as a helicopter platform and ceremonial/exercise space; there is no hangar. FLUME-type water-tank stabilization is fitted.
Modernizations: None.
Naval service: No significant events.

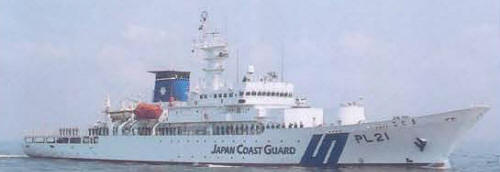

Kojima 2008
