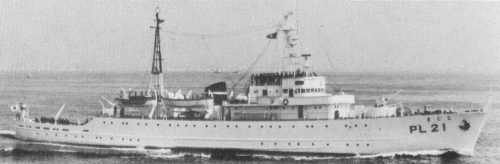

Kojima 1970
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| こじま [Kojima] | PL21 | IHI, Kure | 20.5.1964 | deleted 1993 |
|
Displacement standard, t |
1100 |
|
Displacement normal, t |
1201 |
|
Length, m |
69.6 |
|
Breadth, m |
10.3 |
|
Draught, m |
3.20 |
|
No of shafts |
1 |
|
Machinery |
1 Uraga-Sulzer 7MD51 diesels |
|
Power, h. p. |
2600 |
|
Max speed, kts |
17 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 6000(13) |
|
Armament |
1 x 1 - 76/50 Mk 22, 1 x 1 - 40/60 Mk 3, 1 x 1 - 20/70 Mk 10 |
| Electronic equipment | 2 radars |
|
Complement |
60 + 47 trainees |
Project history: Maritime Safety Academy training ship.
Modernizations: early 1980s: - 1 x 1 - 76/50; + 1 x 1 - 12.7/90
Naval service: No significant events.
Kojima 1977
