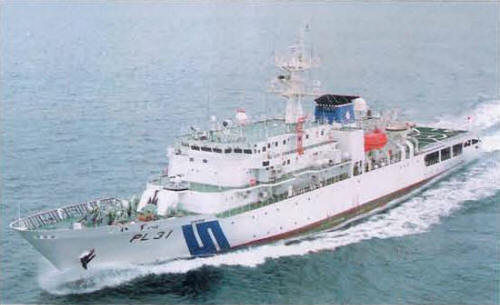

Izu 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| いず [Izu] | PL31 | Kawasaki, Sakaide | 22.3.1996 | 7.2.1997 | 25.9.1997 | in service (2019) |
|
Displacement standard, t |
3683 |
|
Displacement normal, t |
3768 |
|
Length, m |
110.4 |
|
Breadth, m |
15.0 |
|
Draught, m |
5.30 max |
|
No of shafts |
2 |
|
Machinery |
2 Niigata-SEMT-Pielstick 8PC2-6L diesels |
|
Power, h. p. |
12000 |
|
Max speed, kts |
20 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
1 x 3 - 20/76 JM-61-MB Sea Vulcan, helicopter deck |
| Electronic equipment | 2x JMA radars |
|
Complement |
40 + 30 passengers |
Project history: PL 31, approved under the FY 95 budget, replaced an earlier unit with the same name and number. Has a large helicopter platform aft but no hangar. Equipped with a bow thruster and with passive stabilization tanks. Has extensive medical facilities and is intended to serve in disaster relief.
Modernizations: None.
Naval service: No significant events.
Izu 2004
