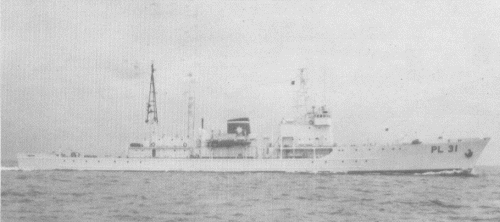

Izu 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| いず [Izu] | PL31 | Hitachi Zosen, Mukojima | 8.1966 | 1/1967 | 31.7.1967 | deleted 8.1997 | |
| みうら [Miura] | PL32 | Hitachi Zosen, Maizuru | 5.1968 | 11/1968 | 15.3.1969 | deleted 9.1998 |
|
Displacement standard, t |
1793 |
|
Displacement normal, t |
2081 |
|
Length, m |
95.5 oa 86.5 pp |
|
Breadth, m |
11.6 |
|
Draught, m |
3.80 |
|
No of shafts |
2 |
|
Machinery |
4 SEMT-Pielstick 12PC2V diesels |
|
Power, h. p. |
12000 |
|
Max speed, kts |
24.6 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 14500(12.7) |
|
Armament |
none |
| Electronic equipment | nav. radar, meteorological radar |
|
Complement |
72 |
Project history: Originally long-range weather ships equipped with weather observation radar. Strengthened against ice.
Modernizations: 1977, both: + 1 x 1 - 40/60 Mk 3
1978, both: - meteorological radar
Naval service: No significant events.

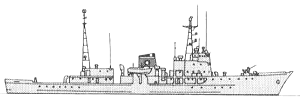

Izu 1978
