| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| いわみ [Iwami] | PL71 | Mitsubishi, Shimonoseki | 25.6.2012 | 9.5.2013 | 27.9.2013 | in service (2019) | |
| れぶん [Rebun] | PL72 | Mitsubishi, Shimonoseki | 25.6.2012 | 25.6.2013 | 30.1.2014 | in service (2019) | |
| きい [Kii] | PL73 | Mitsui, Tamano | 5.3.2013 | 7.11.2013 | 31.7.2014 | in service (2019) | |
| まつしま [Matsushima] | PL74 | Mitsui, Tamano | 5.5.2013 | 13.2.2014 | 30.9.2014 | in service (2019) | |
| わかさ [Wakasa] | PL75 | Mitsui, Tamano | 9.3.2013 | 27.5.2014 | 26.2.2015 | in service (2019) | |
| さど [Sado] | PL76 | Mitsui, Tamano | 9.3.2013 | 3.9.2014 | 26.2.2015 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement normal, t |
1250 |
|
Length, m |
92.0 |
|
Breadth, m |
11.0 |
|
Draught, m |
5.00 |
|
No of shafts |
2 |
|
Machinery |
2 diesels |
|
Power, h. p. |
8000 |
|
Max speed, kts |
21 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
1 x 1 - 30/80 Mk 44 Bushmaster II |
|
Electronic equipment |
2x JMA radars, e/o director, FLIR e/o detector |
|
Complement |
30 |
Project history: 2 - 3 fast craft are carried on davits.
Modernizations: None.
Naval service: No significant events.

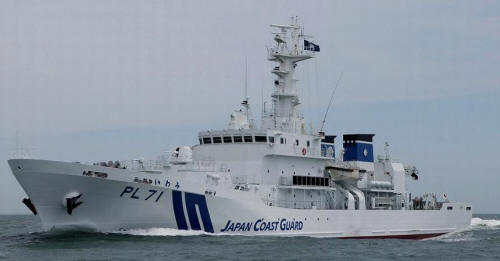

Iwami
