JAPAN MARITIME SELF-DEFENSE FORCE (JAPAN)

MARITIME SAFETY AGENCY

HAYANAMI patrol craft (1993-1996)

Name No Yard No Builder Laid down Launched Comp Fate
はやなみ [Hayanami] PC11   Sumidagawa, Tokyo 9.9.1992 7.1.1993 25.3.1993 in service (2019)
しきなみ [Shikinami], 10.2000- せとぎり [Setogiri] PC12   Sumidagawa, Tokyo 21.7.1993 13.10.1993 24.3.1994 in service (2019)
みずなみ [Mizunami] PC13   Ishihara DY, Takasago 30.7.1993 27.12.1993 24.3.1994 in service (2019)
いよなみ [Ionami] PC14   Sumidagawa, Tokyo 9.12.1993 11.4.1994 30.6.1994 in service (2019)
くりなみ [Kurinami] PC15   Sumidagawa, Tokyo 10.3.1994 3.10.1994 30.1.1995 in service (2019)
はまなみ [Hamanami] PC16   Sumidagawa, Tokyo 29.8.1995 19.1.1996 28.3.1996 in service (2019)
しののめ [Shinonome] PC17   Sumidagawa, Tokyo 29.8.1995 27.11.1995 29.2.1996 in service (2019)
はるなみ [Harunami] PC18   Ishihara DY, Takasago 4.9.1995 31.1.1996 28.3.1996 in service (2019)
きよづき [Kiyozuki] PC19   Ishihara DY, Takasago 4.9.1995 7.11.1995 23.2.1996 in service (2019)
あやなみ [Ayanami] PC20   Yokohama Yacht 13.9.1995 19.12.1995 28.3.1996 in service (2019)
ときなみ [Tokinami] PC21   Yokohama Yacht 13.9.1995 22.12.1995 28.3.1996 in service (2019)



Displacement standard, t

110

Displacement normal, t

190

Length, m

26.2 pp 35.0 oa

Breadth, m

6.30

Draught, m

2.30

No of shafts

2

Machinery

2 MTU 12V396 TB94 diesels

Power, h. p.

4000

Max speed, kts

25

Fuel, t

diesel oil

Endurance, nm(kts)



Armament

1 x 1 - 12.7/90

Electronic equipment

radar

Complement

13

Project history: Two firefighting water cannon are mounted abreast on the foredeck; no fitting for a machinegun mount. All have infrared and low-light-level TV surveillance sensors atop the pilothouse. Painted white.

Modernizations: None.

Naval service: No significant events.

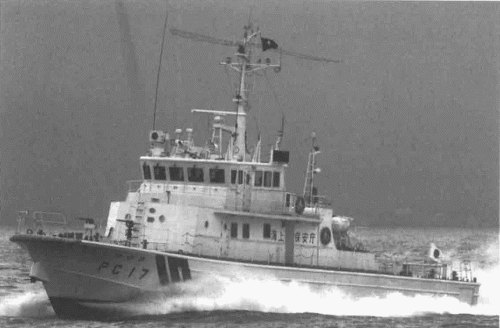

Shinonome 2008
