Hateruma 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| はてるま [Hateruma] | PL61 | Mitsui, Tamano | 7.2.2007 | 10.8.2007 | 31.3.2008 | in service (2019) | |
| はかた [Hakata], 10.2011- いしがき [Ishigaki] | PL62 | Mitsui, Tamano | 20.11.2007 | 19.6.2008 | 2.2.2009 | in service (2019) | |
| よなくに [Yonaguni], 10.2016- くにがみ [Kunigami] | PL63 | Mitsui, Tamano | 20.11.2007 | 19.6.2008 | 2.2.2009 | in service (2019) | |
| もとぶ [Motobu], 3.2012- しもきた [Shimokita] | PL64 | Mitsui, Tamano | 1.3.2008 | 30.9.2008 | 3.3.2009 | in service (2019) | |
| くにがみ [Kunigami], 3.2012- しれとこ [Shiretoko] | PL65 | Mitsui, Tamano | 1.3.2008 | 30.9.2008 | 12.3.2009 | in service (2019) | |
| しきね [Shikine] | PL66 | Mitsubishi, Shimonoseki | 15.7.2008 | 16.4.2009 | 7.10.2009 | in service (2019) | |
| あまぎ [Amagi] | PL67 | Mitsui, Tamano | 7.11.2008 | 25.9.2009 | 11.3.2010 | in service (2019) | |
| すずか [Suzuka] | PL68 | Mitsui, Tamano | 13.2.2009 | 25.9.2009 | 11.3.2010 | in service (2019) | |
| こしき [Koshiki] | PL69 | Mitsubishi, Shimonoseki | 13.2.2009 | 30.9.2009 | 9.3.2010 | in service (2019) |
|
Displacement standard, t |
1000 |
|
Displacement normal, t |
1350 |
|
Length, m |
89.0 |
|
Breadth, m |
11.0 |
|
Draught, m |
4.00 |
|
No of shafts |
2 waterjets |
|
Machinery |
4 diesels |
|
Power, h. p. |
|
|
Max speed, kts |
30 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
1 x 1 - 30/80 Mk 44 Bushmaster II, helicopter deck |
|
Electronic equipment |
2x JMA radars, e/o director |
|
Complement |
30 |
Project history: Fitted with a helicopter landing platform but no hangar. Acquisition and tracking equipment includes a LIDAR (Light Detection And Banging) system. High degree of automation permits reduced crew numbers for a ship this size. Launch and recovery cranes are fitted for RIBs up to 7 m. Have at least one firefighting monitor mounted forward of the 30-mm gun.
Modernizations: None.
Naval service: No significant events.

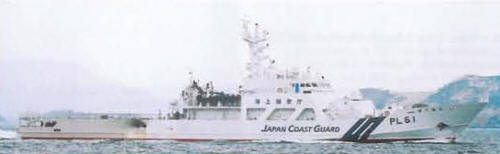

Hateruma 2008
