JAPAN MARITIME SELF-DEFENSE FORCE (JAPAN)

MARITIME SAFETY AGENCY

HAMAGUMO patrol craft (1999-2000)

Name No Yard No Builder Laid down Launched Comp Fate
はまぐも [Hamagumo] PC22   Sumidagawa, Tokyo 2.12.1998 16.4.1999 27.8.1999 in service (2019)
あわなみ [Awanami], 2015- あゆづき [Ayuzuki] PC23   Sumidagawa, Tokyo 2.12.1998 14.5.1999 27.8.1999 in service (2019)
うらなみ [Uranami], 2015- ゆふぎり [Yufugiri] PC24   Sumidagawa, Tokyo 10.3.1999 8.9.1999 24.1.2000 in service (2019)
しきなみ [Shikinami], 2015- ともなみ [Tomonami] PC25   Ishihara DY, Takasago 7.4.2000 4.8.2000 24.10.2000 in service (2019)



Displacement standard, t

110

Displacement normal, t

190

Length, m

26.2 pp 35.0 oa

Breadth, m

6.30

Draught, m

2.30

No of shafts

2

Machinery

2 MTU 12V396 TB94 diesels

Power, h. p.

4000

Max speed, kts

24

Fuel, t

diesel oil

Endurance, nm(kts)



Armament

1 x 1 - 12.7/90

Electronic equipment

radar

Complement

13

Project history: Hayanami class with a tall telescoping mast supporting a firefighting water, monitor, a second monitor atop the pilothouse, and a maximum speed of 24 kts.

Modernizations: None.

Naval service: No significant events.

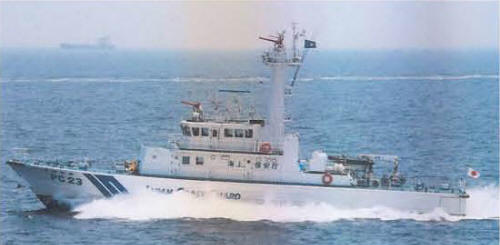

Awanami 2008
