Erimo 1970
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| えりも [Erimo] | PL13 | Hitachi Zosen, Mukojima | 3.1965 | 14.8.1965 | 30.11.1965 | deleted 9.1994 | |
| さつま [Satsuma] | PL14 | Hitachi Zosen, Mukojima | 30.7.1966 | deleted 9.1995 |
|
Displacement standard, t |
|
|
Displacement normal, t |
1010 |
|
Length, m |
76.6 |
|
Breadth, m |
9.20 |
|
Draught, m |
3.00 |
|
No of shafts |
2 |
|
Machinery |
2 Mitsui - Burmeister & Wain 635V2BU45 diesels |
|
Power, h. p. |
4800 |
|
Max speed, kts |
19.8 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 6200(17) |
|
Armament |
1 x 1 - 76/50 Mk 22, 1 x 1 - 20/70 Mk 10 |
| Electronic equipment | radar |
|
Complement |
72 |
Project history: Erimo was strengthened for patrol service off Northern Japan. Satsuma was assigned to guard and rescue S of Japan.
Modernizations: 1980s, old radar was replaced by JMA 1576 and JMA 1596 radars
Naval service: No significant events.

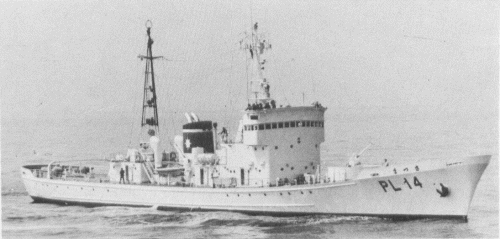

Satsuma 1977
© Ivan Gogin, 2016
