Daio 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| だいおう [Daio] | PL15 | Hitachi, Maizuru | 18.10.1972 | 19.6.1973 | 28.9.1973 | deleted 8.2001 | |
| むろと [Muroto] | PL16 | Naikai, Innoshima | 15.3.1973 | 5.8.1974 | 30.11.1974 | deleted 1.2005 |
|
Displacement standard, t |
940 |
|
Displacement normal, t |
1206 |
|
Length, m |
73.0 pp 76.6 oa |
|
Breadth, m |
9.60 |
|
Draught, m |
3.18 |
|
No of shafts |
2 |
|
Machinery |
2 Fuji 8S40B diesels |
|
Power, h. p. |
8120 |
|
Max speed, kts |
20.4 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 4400(18) |
|
Armament |
1 x 1 - 40/60 Mk 3, 1 x 1 - 20/70 Mk 10 |
| Electronic equipment | JMA 1596, JMA 1576 radars |
|
Complement |
45 |
Project history: Enlarged Erimo with more powerful engines.
Modernizations: None.
Naval service: No significant events.

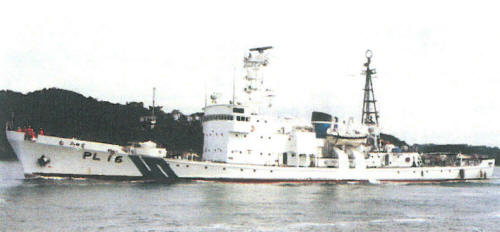

Muroto 2001
© Ivan Gogin, 2017
