Names |
PS42 びざん [Bizan] PS47 あさま [Asama] PS48 しらみね [Shiramine] |
|
Builders |
Mitsubishi, Shimonoseki: PS42, 47, 48 |
|
Commissioned |
3/1966: PS42 1-12/1969: PS47, 48 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
2/1987: PS42 3/1988: PS47 3/1993: PS48 |
|
Displacement standard, t |
70 |
|
Displacement full, t |
85 |
|
Length, m |
26.0 |
|
Breadth, m |
5.60 |
|
Draught, m |
0.87 |
|
No of shafts |
2 |
|
Machinery |
PS42, 47: 2 Mitshubishi 12DH20MTK diesels PS48: 2 Ikegai-Mercedes-Benz MB820Db diesels |
|
Power, h. p. |
PS42, 47: 1140 PS48: 2200 |
|
Max speed, kts |
PS42, 47: 19 PS48: 23 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
400(18) |
|
Armament |
1 x 1 - 12.7/90 |
|
Electronic equipment |
MD808 radar |
|
Complement |
14 |
Project history: Rated as small patrol vessel. Light metal construction.
Modernizations: None.
Naval service: No significant events.

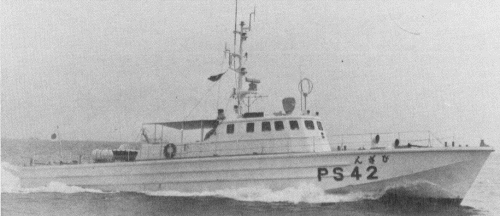

Bizan 1974
