Aso 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| あそ [Aso] | PL41 | Mitsubishi, Shimonoseki | 18.12.2003 | 28.10.2004 | 15.3.2005 | in service (2019) | |
| でわ [Dewa] | PL42 | Universal, Keihin | 5.4.2004 | 9.5.2005 | 12.4.2006 | in service (2019) | |
| はくさん [Hakusan] | PL43 | Universal, Keihin | 5.4.2004 | 5.10.2005 | 12.4.2006 | in service (2019) |
|
Displacement standard, t |
770 |
|
Displacement normal, t |
1000 |
|
Length, m |
79.0 |
|
Breadth, m |
10.0 |
|
Draught, m |
4.00 |
|
No of shafts |
4 waterjets |
|
Machinery |
4 diesels |
|
Power, h. p. |
|
|
Max speed, kts |
30 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
1 x 1 - 40/60 Mk 3 |
|
Electronic equipment |
2x JMA radars |
|
Complement |
Project history: Large fast patrol cutters.
Modernizations: None.
Naval service: No significant events.

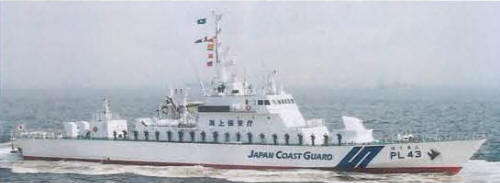

Hakusan 2007
