Kunashiri 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| あまみ [Amami] | PM95 | Hitachi, Kanagawa | 22.10.1991 | 22.6.1992 | 28.9.1992 | in service (2019) | |
| まつうら [Matsuura], 4.2000- くろかみ [Kurokami] | PM96 | Hitachi, Kanagawa | 9.9.1994 | 31.5.1995 | 24.11.1995 | in service (2019) | |
| くなしり [Kunashiri], 2.2012- いしかり [Ishikari], 2.2017- いぶき [Ibuki] | PM97 | Mitsubishi, Shimonoseki | 30.9.1997 | 26.5.1998 | 26.8.1998 | in service (2019) | |
| みなべ [Minabe], 2.2010- ほろべつ [Horobetsu] | PM98 | Mitsubishi, Shimonoseki | 30.9.1997 | 26.5.1998 | 26.8.1998 | in service (2019) |
|
Displacement standard, t |
230 |
|
Displacement normal, t |
350 |
|
Length, m |
56.0 |
|
Breadth, m |
7.50 |
|
Draught, m |
2.00 |
|
No of shafts |
2 |
|
Machinery |
2 Fuji 8S40B diesels |
|
Power, h. p. |
7000 |
|
Max speed, kts |
25 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
1 x 3 - 20/76 JM-61-MB Sea Vulcan |
|
Electronic equipment |
2x radars |
|
Complement |
30 |
Project history: Carry a 5.5m rigid inflatable rescue boat on an internal ramp at the stern. The gunmounts on the second pair are on raised bandstands.
Modernizations: None.
Naval service: No significant events.

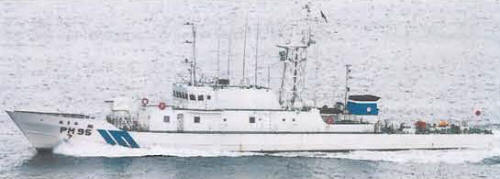

Amami 2007
