Names |
PG821 1号 [1-go] PG822 2号 [2-go] PG823 3号 [3-go] |
|
Builders |
Sumitomo, Uraga: PG821-823 |
|
Commissioned |
3/1993: PG821, 822 3/1995: PG823 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
6/2008: PG821, 822 6/2010: PG823 |
|
Displacement standard, t |
50 |
|
Displacement full, t |
63 |
|
Length, m |
23.0 hull 24.6 hullborne |
|
Breadth, m |
12.1 foils 7.01 hull |
|
Draught, m |
1.87 hull 4.37 foils extended |
|
No of shafts |
1 + 1 waterjet |
|
Machinery |
CODOG: 1 Isuzu 6BD1TC diesel (1 propeller) / 1 General Motors LM-500 gas turbine (1 waterjet) |
|
Power, h. p. |
180 / 5200 |
|
Max speed, kts |
46 |
|
Fuel, t |
diesel / gas turbine oil |
| Endurance, nm(kts) | 400(40) |
|
Armament |
2 x 2 SSM-1B SSM (4 SSM-1B), 1 x 3 - 20/76 JM-61-MB Sea Vulcan |
| Electronic equipment | OPS-18, OPS-20 radars, NOLR-9 ECM suite, 2x Mk 36 SRBOC decoy RL, OYQ-8 CCS |
| Complement |
11 |
Project history: Licensed-built Italian Sparviero design with Japanese equipment.
Modernizations: None.
Naval service: No significant events.

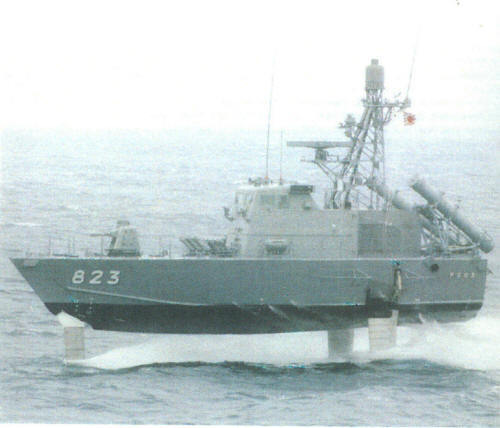

3-go 2003

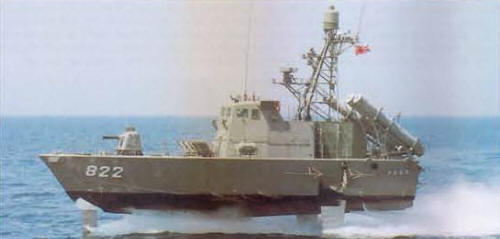

2-go 2006
