JAPAN MARITIME SELF-DEFENCE FORCE (JAPAN)

COASTAL FORCES

11-GO fast attack craft (torpedo) (1971 - 1975)

11-go 1980

Name No Yard No Builder Laid down Launched Comp Fate
11 [11-go] PT811   Mitsubishi, Shimonoseki 17.3.1970   27.3.1971 stricken 11.1990
12 [12-go] PT812   Mitsubishi, Shimonoseki 22.4.1971   28.3.1972 stricken 10.1991
13 [13-go] PT813   Mitsubishi, Shimonoseki 28.3.1972   16.12.1972 stricken 10.1991
14 [14-go] PT814   Mitsubishi, Shimonoseki 27.3.1973   15.2.1974 stricken 3.1993
15 [15-go] PT815   Mitsubishi, Shimonoseki 23.4.1974   10.7.1975 stricken 10.1994



Displacement standard, t

100

Displacement full, t

140

Length, m

35.0

Breadth, m

9.20

Draught, m

1.20

No of shafts

3

Machinery

811: CODAG: 2 Mitsubishi 24WZ-30MC diesels + 2 IHI IM-300 gas turbines

812-815: CODAG: 2 Mitsubishi 24WZ-31MC diesels + 2 IHI IM-300 gas turbines

Power, h. p.

811: 6000 + 4500 = 10500

812-815: 6600 + 4400 = 11000

Max speed, kts

40

Fuel, t

diesel / gas turbine oil

Endurance, nm(kts)



Armament

2 x 1 - 40/60 Mk 3, 4 - 533 HO-101B TT

Electronic equipment

OPS-13 radar

Complement

26 - 28

Project history: Mass-produced MTBs.

Modernizations: None.

Naval service: No significant events.

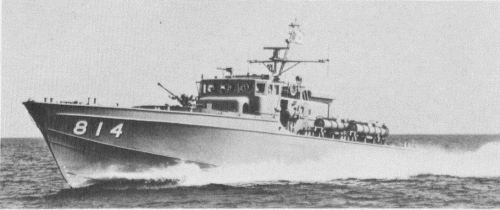

14-go 1976
