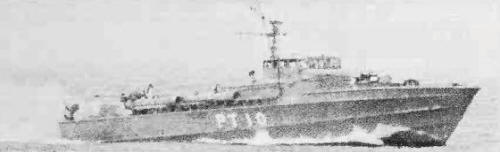

10-go 1965
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 10号 [10-go] | PT810 | Mitsubishi Zosen, Shimonoseki | 9/1960 | 28.7.1961 | 5/1962 | deleted 1975 |
|
Displacement standard, t |
85 |
|
Displacement full, t |
120 |
|
Length, m |
32.0 |
|
Breadth, m |
8.50 |
|
Draught, m |
1.20 max |
|
No of shafts |
3 |
|
Machinery |
3 Mitsubishi 24WZ-30MC diesels |
|
Power, h. p. |
9000 |
|
Max speed, kts |
40 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
2 x 1 - 40/60 Mk 3, 4 - 533 TT |
|
Electronic equipment |
OPS-13 radar, dipping sonar, sonobuoys |
|
Complement |
20 |
Project history: Authorized under the 1960 programme. Built as a test platform for the follow-on, mass produced 11-go class. Aluminium alloy hull.
Modernizations: None.
Naval service: No significant events.
10-go 1971
