Hayabusa 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| はやぶさ [Hayabusa] | PG824 | Mitsubishi, Shimonoseki | 9.11.2000 | 13.6.2001 | 25.3.2002 | in service (2019) | |
| わかたか [Wakataka] | PG825 | Mitsubishi, Shimonoseki | 9.11.2000 | 13.9.2001 | 11.3.2002 | in service (2019) | |
| おおたか [Otaka] | PG826 | Mitsubishi, Shimonoseki | 2.10.2001 | 13.5.2002 | 24.3.2003 | in service (2019) | |
| くまたか [Kumataka] | PG827 | Mitsubishi, Shimonoseki | 2.10.2001 | 2.8.2002 | 24.3.2003 | in service (2019) | |
| うみたか [Umitaka] | PG828 | Mitsubishi, Shimonoseki | 4.10.2002 | 21.5.2003 | 24.3.2004 | in service (2019) | |
| しらたか [Shirataka] | PG829 | Mitsubishi, Shimonoseki | 4.10.2002 | 8.8.2003 | 24.3.2004 | in service (2019) |
|
Displacement standard, t |
200 |
|
Displacement full, t |
240 |
|
Length, m |
50.1 |
|
Breadth, m |
8.40 |
|
Draught, m |
1.70 |
|
No of shafts |
3 waterjets |
|
Machinery |
3 General Electric LM-500 gas turbines |
|
Power, h. p. |
16200 |
|
Max speed, kts |
44 |
|
Fuel, t |
gas turbine oil |
| Endurance, nm(kts) | |
|
Armament |
2 x 2 SSM-1B SSM (4 SSM-1B), 1 x 1 - 76/62 OTO-Melara Compact, 2 x 1 - 12.7/90 |
| Electronic equipment | OPS-18-3, OPS-20, FCS-2-31 radars, OAX-2 e/o director, NOLR-9B ECM suite, 2x Mk 36 SRBOC decoy RL, OYQ-8 CCS |
| Complement |
21 |
Project history: Substituted for further hydrofoil construction. More than three times the displacement of the older PG01 series. Carry a 6.3m RIB amidships for boarding and inspection duties. The 76-mm gun has a faceted gunhouse to reduce radar reflectivity.
Modernizations: None.
Naval service: No significant events.

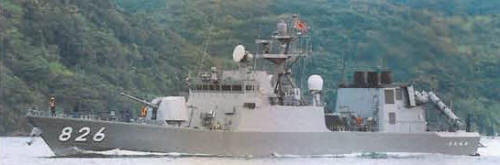

Otaka 2008
