Okinoshima 1905
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 見島 [Mishima] (ex-Адмирал Сенявин [Admiral Senyavin]) | New Admiralty, St. Petersburg, Russia / Maizuru K K | 2.8.1892 | 23.8.1894 | 16.7.1897 // 7.1905 | submarine tender 1928 | ||
| 沖ノ島 [Okinoshima] (ex-Генерал-адмирал Апраксин [General-admiral Apraxin]) | New Admiralty, St. Petersburg, Russia / Maizuru K K | 25.10.1894 | 13.5.1896 | 17.8.1899 // 9.1905 | hulk 1922 |
|
Displacement normal, t |
4126 - 4165 |
|
Displacement full, t |
4270 - 5050 |
|
Length, m |
84.6 pp 86.4 oa |
|
Breadth, m |
15.9 |
|
Draught, m |
5.18 - 5.80 |
|
No of shafts |
2 |
|
Machinery |
Mishima: 2 VTE, 8 cylindrical boilers Okinoshima: V2 TE, 18 Belleville boilers |
|
Power, h. p. |
5750 |
|
Max speed, kts |
16 |
|
Fuel, t |
coal 400 |
| Endurance, nm(kts) | 3000(10) |
|
Armour, mm |
Harvey steel - belt: 254 - 152, bulkheads: 203 - 152, deck: 76 - 51, turrets: 203 - 178, CT: 203 - 178 |
|
Armament |
Mishima: 2 x 2 - 254/42 (rus), 4 x 1 - 120/40 Armstrong T, 4 x 1 - 76/40 Armstrong N, 2 x 1 - 47/30 Hotchkiss Mk I Okinoshima: 1 x 2 - 254/42 (rus), 1 х 1 - 254/42 (rus), 6 x 1 - 120/40 Armstrong T |
|
Complement |
404 |
Project history: Former Russian coast defence battleships Admiral Senyavin and General-Admiral Apraksin, captured 28.5.1905 after Tsushima battle.
Ship protection: Main belt (51.8x2.1m) was closed by 203-152mm bulkheads. Main deck was 51mm between barbettes and 76mm at ship ends.
Modernizations: 3.1907, Mishima: - 4 x 1 - 120/40, 4 x 1 - 76/40, 2 x 1 - 47/30; + 6 x 1 - 152/40 Armstrong Z
Naval service: Ammunition explosion has happened in the spring of 1907 on Mishima. Both ships participated from 27.10.1914 till 1.11.1914 in bombardment of coast positions of Germans in Tsingtao. Okinoshima served as TS, in 1915 she was disarmed and converted to barrack ship; she was sold for scrap in 1939. Mishima in 1918 was disarmed and converted into the icebreaker (ram was sheared, fwd turret demounted), the aft turret was stored. In 1928 Mishima was stricken and converted to repair ship, and later to a hulk. In 1936 the former battleship was converted to target and sunk on manoeuvres.

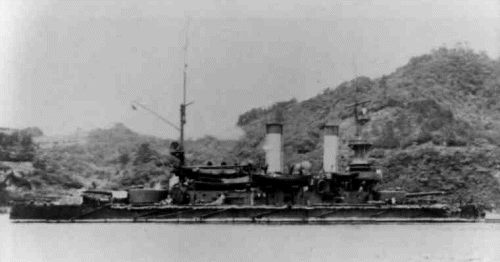

Mishima
Okinoshima
