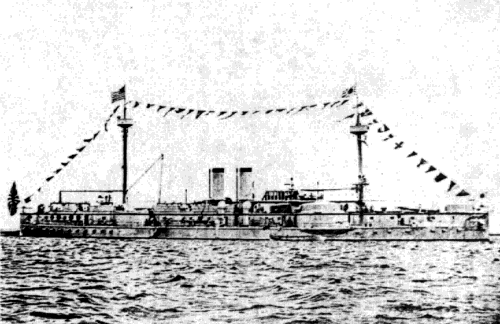

Chin Yen 1900
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 鎮遠 [Chin Yen] (ex-鎮遠 Chen Yuan) | 112 | Vulcan, Stettin, Germany | 1881 | 28.11.1882 | 1885 // 3.1895 | stricken 1911 |
|
Displacement normal, t |
7220 |
|
Displacement full, t |
7670 |
|
Length, m |
91.0 wl 93.9 oa |
|
Breadth, m |
18.0 |
|
Draught, m |
6.10 mean |
|
No of shafts |
2 |
|
Machinery |
2 HC, 8 cylindrical boilers |
|
Power, h. p. |
6300 |
|
Max speed, kts |
14.5 |
|
Fuel, t |
coal 1000 |
| Endurance, nm(kts) | 4500(10) |
|
Armour, mm |
belt: 356 - 203, bulkheads: 356, barbettes: 305, main turrets: 305 - 76, secondary turrets: 51, deck: 76, CT: 203 |
|
Armament |
2 x 2 - 305/22 RKL/25 C/80, 2 x 1 - 149/32 RKL/35 C/80, 2 x 1 - 79/27 RKL/27 C/73, 2 x 1 - 57/43 Nordenfelt, 8 x 5 - 37/20 Hotchkiss, 3 - 350 TT (1 bow, 2 beam), 2 torpedo boats |
|
Complement |
329 |
Project history: The Chinese central citadel battleship Chen Yuan was captured by Japanese forces during the Sino-Japanese war when the port of Wei-Hai-Wei surrendered on 12 February 1895. She was refitted and re-armed, commissioning into the Imperial Navy as the Chin Yen to become the Japanese Navy's first battleship.
Ship protection: Citadel was 43.5m long and closed magazines and machinery. Lower belt layer (1.5m-high) had 203mm thickness, medium 1.5m-high layer was 356mm and upper layer was 254mm. Belt was connected by 305mm common barbette of both turrets. 76mm deck closed full hull length, it was flat amidships and aft and had turtleback form at fore end. Main guns were placed in turrets with 305mm faces, 152mm sides and 76mm crowns. CT between turrets had 203mm sides. Secondary turrets had 51mm sides.
Modernizations: 1895-1896: - 2 x 1 - 149/32, 2 x 1 - 79/27, 8 x 5 - 37/20; + 4 x 1 - 152/40 Armstrong W, 8 x 1 - 47/40 3pdr Hotchkiss Mk I
Naval service: She remained in service during the Russo-Japanese war and although present at the bombardment of Port Arthur and the Battle of the Yellow Sea she did not actually go into action. She was removed from the effective fleet in 1910 to become a training ship for pilots, stricken in 1911 and BU in 1914.
Chin Yen
