Toba 1914
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 鳥羽 [Toba] | Sasebo K K | 7.1911 | 7.11.1911 | 11.1911 | surrendered 8.1945, to China 8.1945 (楊氣 [Yang Chi]) |
|
Displacement normal, t |
250 |
|
Displacement full, t |
291 |
|
Length, m |
55.9 |
|
Breadth, m |
8.23 |
|
Draught, m |
0.79 |
|
No of shafts |
3 |
|
Machinery |
3 VTE, 2 cylindrical boilers |
|
Power, h. p. |
1400 |
|
Max speed, kts |
15 |
|
Fuel, t |
coal 81 |
| Endurance, nm(kts) | |
|
Armament |
2 x 1 - 76/23 41-shiki, 6 x 1 - 6.5/115 |
|
Complement |
59 |
Project history: River gunboat Toba was intended for service on Chinese rivers. Toba was built under the 1910 Estimates.
Modernizations: 1935: - 2 x 1 - 76/40; + 2 x 1 - 76/40 11-shiki
1940: - 6 x 1 - 6.5/115; + 3 x 1 - 25/60 96-shiki, 1 x 1 - 13.2/76
1945: disarmed
Naval service: In 1945 gunboat transferred their guns to coastal batteries.
In August, 1945 China captured Toba at Shanghai.

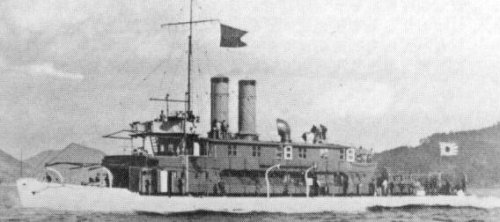

Toba
