241-go 1943
|
Names |
第241号魚雷艇 - 第286号魚雷艇 [241-go - 286-go] 第457号魚雷艇 - 第467号魚雷艇 [457-go - 467-go] 第506号魚雷艇 - 第528号魚雷艇 [506-go - 528-go] |
|
Builders |
Yokosuka K K: 241 - 286-go Sasebo K K: 457 - 467-go Maizuru K K: 506 - 528-go |
|
Commissioned |
1943 - 1945: 241-286-go, 457-467-go, 506-528-go |
|
Losses |
at least 245-go (1945), 251-go (CTL 11.7.1944), 254-go (1945), 256-go (CTL 18.7.1945), 258-go (1945) |
|
Transfers |
none |
|
Discarding |
after 8.1945: some from 241 - 244-go, 246 - 250-go, 252-go, 253-go, 255-go, 257-go, 259 - 286-go, 457 - 467-go, 506 - 528-go |
|
Displacement standard, t |
20 |
|
Displacement full, t |
24 |
|
Length, m |
18.0 |
|
Breadth, m |
4.30 |
|
Draught, m |
0.65 - 0.74 |
|
No of shafts |
2 |
|
Machinery |
2 Kinsei 41-shiki petrol engines (air-cooled) |
|
Power, h. p. |
1400 |
|
Max speed, kts |
27.5 |
|
Fuel, t |
petrol |
|
Endurance, nm(kts) |
220(26) |
|
Armament |
1 x 1 - 25/60 96-shiki, 2 - 450 TT |
|
Complement |
7 |
Project history: Development of B type (Otsu-Gata) T1. They differed each other by as a hull material (steel on Ò23, Ò31, Ò32, Ò33 and Ò37 series or wooden on Ò25, Ò34, Ò35, Ò36, Ò38 and Ò39 series), and type and number of engines. Shortage of the latter has compelled to fit 238 boats with low-power (450hp) petrol engines. Since Ò31 series boats did not had cruising engines.
Modernizations: None.
Naval service: No significant events

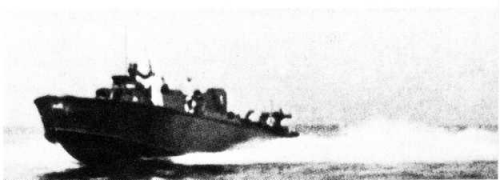

"T38" type MTB 6.1944
