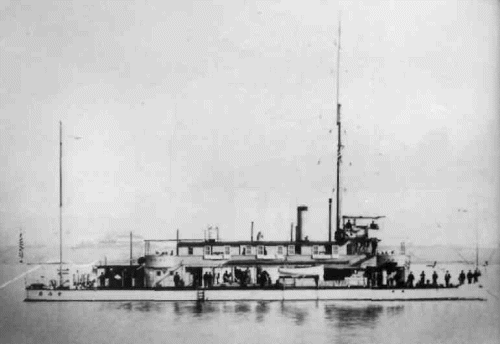

Sumida 1910
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 墨田 [Sumida] | 349 | Thornycroft, Chiswick, UK | 1896 | 26.6.1903 | 4.1906 | stricken 1935 |
|
Displacement normal, t |
126 |
|
Displacement full, t |
|
|
Length, m |
44.2 pp |
|
Breadth, m |
7.19 |
|
Draught, m |
0.58 |
|
No of shafts |
3 |
|
Machinery |
3 VTE, Thornycroft boilers |
|
Power, h. p. |
550 |
|
Max speed, kts |
13 |
|
Fuel, t |
coal 40 |
| Endurance, nm(kts) | |
|
Armament |
2 x 1 - 47/40 3pdr Hotchkiss Mk I, 4 x 1 - 6.5/115 |
|
Complement |
40 |
Project history: Specially intended for service on China rivers, built under the 1896-1897 programme. Sumida has been built in Britain and assembled in Japan from ready sections in 10.1903-4/1906.
Modernizations: None.
Naval service: Based at Shanghai and served till 1935, then had been handed over on demolition.
Sumida
