IMPERIAL JAPANESE NAVY (JAPAN)

AIRCRAFT CARRYING SHIPS

NOTORO seaplane tenders (1920-1922/1924)

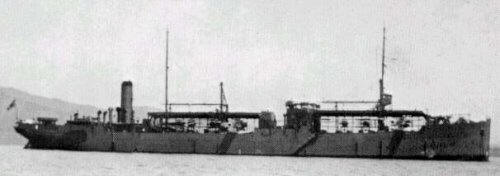

Notoro 1942

Name No Yard No Builder Laid down Launched Comp Fate
能登呂 [Notoro]     Kawasaki, Kobe 11.1919 3.5.1920 8.1920 // 1924 tanker late1942
鶴見 [Tsurumi]     Osaka IWks 3.1921 29.9.1921 3.1922 // 1924 tanker 1931



Displacement standard, t

14050

Displacement full, t



Length, m

138.9 pp

Breadth, m

17.7

Draught, m

8.08

No of shafts

2

Machinery

2 VTE, 4 Miyabara boilers

Power, h. p.

5850

Max speed, kts

12

Fuel, t

oil 1000
Armament

2 x 1 - 120/45 3-shiki, 2 x 1 - 76/40 3-shiki, 10 seaplanes (W.33)

Complement 155

Aircraft facilities: Aircraft based on deck.

Project history: Former tanker vessel of Shiretoko class. Seaplanes carried on upper deck and handled from and to water by cargo booms.

Modernizations: None.

Naval service: No significant events.

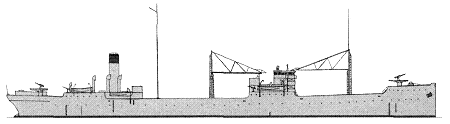

Notoro
