NARUMI river gunboat (1921/1943)

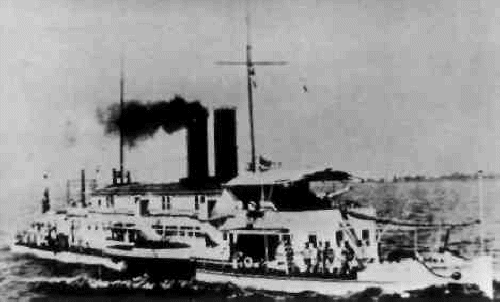

Narumi 1943

Name No Yard No Builder Laid down Launched Comp Fate
鳴海 [Narumi] (ex-Ermanno Carlotto)     Shanghai Dock, China   19.6.1918 2/1921 // 15.10.1943 surrendered 8.1945, to China 1946 (錢坤 [Kiang Kun])



Displacement normal, t

218

Displacement full, t



Length, m

48.8

Breadth, m

7.50

Draught, m

0.91

No of shafts

2

Machinery

2 VTE, 2 Yarrow boilers

Power, h. p.

1100

Max speed, kts

14

Fuel, t

oil 56
Endurance, nm(kts)

Armament

2 x 1 - 76/40 3-shiki, 6 x 1 - 7.7/80

Complement

44

Project history: Italian river gunboat Ermanno Carlotto was scuttled by crew 9.9.1943 in Shanghai, salvaged by Japanese and entered service as Narumi 15.10.1943.

Modernizations: 1945: disarmed.

Naval service: Narumi was damaged 15.1.1945 by US Army aircraft near Hankow, disarmed 1945 (guns were used ashore) and surrendered in August, 1945.

Narumi
