Mogami 1908
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 最上 [Mogami] | Mitsubishi, Nagasaki | 3.3.1907 | 25.3.1908 | 16.9.1908 | stricken 1928 |
|
Displacement normal, t |
1350 |
|
Displacement full, t |
|
|
Length, m |
91.4 pp 96.3 oa |
|
Breadth, m |
9.80 |
|
Draught, m |
3.00 |
|
No of shafts |
3 |
|
Machinery |
3 Parsons steam turbines, 6 Miyabara boilers |
|
Power, h. p. |
8000 |
|
Max speed, kts |
23 |
|
Fuel, t |
coal 340 + oil 76 |
| Endurance, nm(kts) | 3300(10) |
|
Armour, mm |
deck: 63, CT: 51 |
|
Armament |
2 x 1 - 120/40 Armstrong T, 4 x 1 - 76/40 Armstrong N, 1 x 1 - 6.5/115, 2 x 1 - 450 TT |
|
Complement |
180 |
Project history: Essentially small cruisers although rated as dispatch boats, these craft became obsolete with the advent of radio communitions. Because they had to be very fast, Mogami was the first turbine ship in the Japanese Navy, and also the first with three shafts. Although their particulars were similar, Yodo had a clipper bow and two funnels, whereas Mogami had a straight raked bow and three funnels. Both were delayed in construction, although officially laid down on 11 December 1905.
Ship protection: Main 63mm deck had 63mm slopes and protected machinery only.
Modernizations: None.
Naval service: Reclassified as gunboat in 1912. Mogami was stricken in 1928.

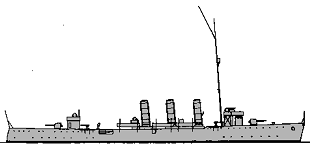

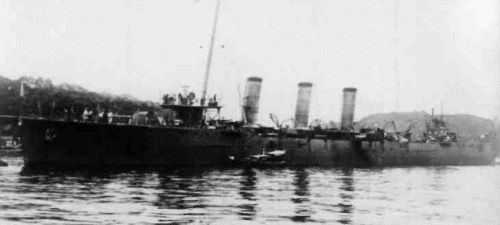

Mogami
