Atami 1941
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 熱海 [Atami] | Fujinagata, Osaka | 11.1928 | 30.3.1929 | 6.1929 | surrendered 8.1945, to China 8.1945 (永平 [Yung Ping]) | ||
| 二見 [Futami] | Fujinagata, Osaka | 6.1929 | 20.11.1929 | 2.1930 | surrendered 8.1945, to China 8.1945 (永安 [Yung An]) |
|
Displacement standard, t |
206 |
|
Displacement full, t |
249 |
|
Length, m |
45.3 pp 46.3 oa |
|
Breadth, m |
6.30 |
|
Draught, m |
0.92 |
|
No of shafts |
2 |
|
Machinery |
2 2-cyl compound VE, 2 Kampon boilers |
|
Power, h. p. |
1300 |
|
Max speed, kts |
16.7 |
|
Fuel, t |
oil 53 |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 76/23 41-shiki, 1 x 1 - 13.2/76, 5 x 1 - 7.7/80 |
|
Complement |
77 |
Project history: River gunboats of Atami class were intended for service on Chinese rivers. Ships had similar characteristics and outwardly resembled predeccessors. Built under the 1923 programme.
Modernizations: 1940, both: - 1 x 1 - 76/23, 1 x 1 - 13.2/76, 5 x 1 - 7.7/80; + 1 x 1 - 76/40 11-shiki, 5 x 1 - 25/60 96-shiki
1945, both: disarmed
Naval service: In 1945 both gunboats transferred their guns to coastal batteries.
In 1945 China received Atami and Futami.

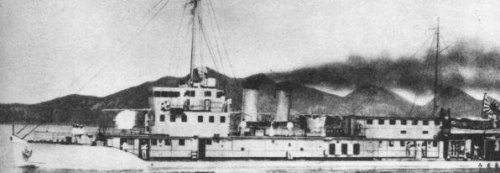

Atami
