Cornwall 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Cornwall | 421 | Damen, Gorinchem, Netherlands | 27.10.2005 | stricken 11.2016 | |||
| Middlesex | 422 | Damen, Gorinchem, Netherlands | 7.4.2006 | stricken 11.2016 | |||
| Surrey | 423 | Damen, Gorinchem, Netherlands | 26.6.2006 | stricken 11.2016 | |||
| Cornwall | 421 | Damen, Gorinchem, Netherlands | 16.1.2017 | in service (2020) | |||
| Middlesex | 422 | Damen, Gorinchem, Netherlands | 16.1.2017 | in service (2020) |
|
Displacement standard, t |
|
|
Displacement full, t |
205 |
|
Length, m |
40.0 pp 42.8 oa |
|
Breadth, m |
7.11 |
|
Draught, m |
2.52 |
|
No of shafts |
2 |
|
Machinery |
2 Caterpillar 3516B DITA diesels |
|
Power, h. p. |
5715 |
|
Max speed, kts |
26 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1800(12) |
|
Armament |
2 x 1 - 12.7/90 |
|
Electronic equipment |
2x JRC radars |
|
Complement |
12 |
Project history: Damen Stan Patrol 4207 design. Three craft purchased in 2005-2006, poorly maintained and being in the very poor condition, were given to the builder, and in return Damen sent two new ships.
Modernizations: None.
Naval service: No significant events.

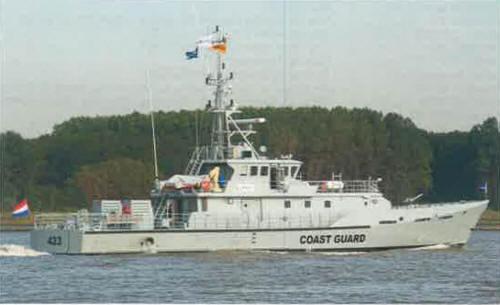

Surrey on trials 2006
© Ivan Gogin, 2020
