N3 1941
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| N3 (ex-Õðàáðè [Hrabri], ex-L67) | Vickers-Armstrong, Elswick, UK | 8.11.1917 | 15.6.1927 | 2.1928 // 4.1941 | never commissioned, BU 1941 |
|
Displacement standard, t |
|
|
Displacement normal, t |
975 / 1164 |
|
Length, m |
72.1 |
|
Breadth, m |
7.32 |
|
Draught, m |
3.96 |
|
No of shafts |
2 |
|
Machinery |
2 Vickers diesels / 2 electric motors |
|
Power, h. p. |
2400 / 1600 |
|
Max speed, kts |
15.7 / 10 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 5000(9) / |
|
Armament |
2 x 1 - 102/40 QF Mk IV, 1 x 1 - 13.2/76, 6 - 533 TT (bow, 12), |
| Electronic equipment | presumably type 113C sonar |
|
Complement |
47 |
| Diving depth operational, m | 50 |
Project history: Yugoslavian submarine captured 17.4.1941, never commissioned by Italian navy as she was considered inoperable.

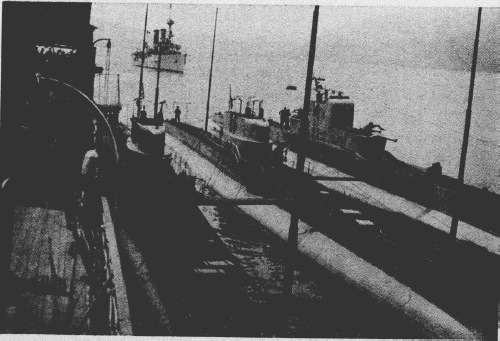

Left to right: Osvetnik, Smeli, Hrabri
