N1 1918
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| N1 | Ansaldo, Sestri Ponente | 3.1916 | 6.9.1917 | 7.1918 | stricken 10.1930 | ||
| N2 | Ansaldo, Sestri Ponente | 3.1916 | 26.1.1918 | 12.1918 | stricken 5.1928 | ||
| N3 | Ansaldo, Sestri Ponente | 3.1916 | 27.4.1918 | 10.1918 | stricken 8.1935 | ||
| N4 | Ansaldo, Sestri Ponente | 3.1916 | 6.10.1918 | 4.1919 | stricken 8.1935 | ||
| N5 | Tosi, Taranto | 8.1916 | 18.11.1917 | 1.1919 | stricken 7.1929 | ||
| N6 | Tosi, Taranto | 8.1916 | 20.9.1918 | 6.1919 | stricken 8.1935 |
|
Displacement standard, t |
262 |
|
Displacement normal, t |
277 / 363 |
|
Length, m |
45.8 |
|
Breadth, m |
4.28 |
|
Draught, m |
3.17 |
|
No of shafts |
2 |
|
Machinery |
N1 - 4: 2 Sulzer diesels / 2 Ansaldo electric motors N5, 6: 2 Tosi diesels / 2 Ansaldo electric motors |
|
Power, h. p. |
N1 - 4: 650 - 400 / 400 N5, 6: 700 - 820 / 400 - 450 |
|
Max speed, kts |
N1 - 4: 12.5 / 7.6 N5, 6: 13.5 / 7.9 |
|
Fuel, t |
diesel oil 9 - 10 |
|
Endurance, nm(kts) |
N1 - 4: 1300(9) / 80(2) N5, 6: 1485(9) / 120(2) |
|
Armament |
1 x 1 - 76/30 A1914, 2 - 450 TT (bow, 4) |
|
Complement |
23 |
| Diving depth operational, m | 40 |
Project history: Increased and improved Nautilus. N5 and N6 had more powerful diesels.
Modernizations: None.
Naval service: No significant events.

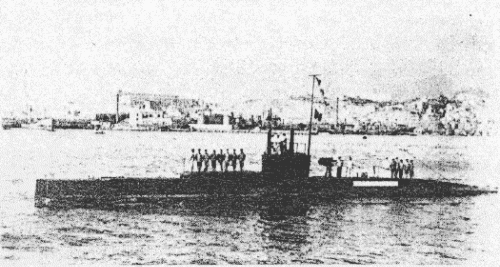

N1 1918

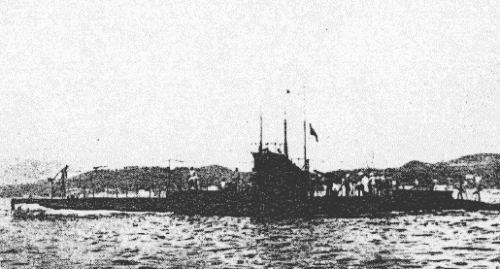

N4 post-war
