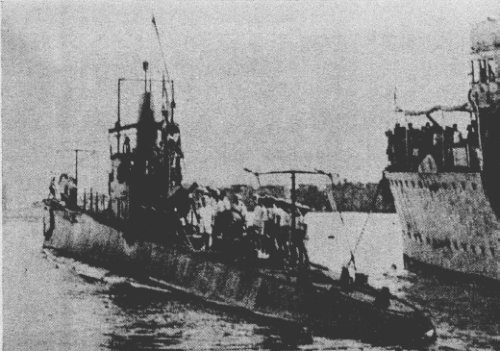

Otaria 1940
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Glauco (ex-Delfim) | CRDA, Monfalcone | 10.1932 | 5.1.1935 | 9.1935 | scuttled 27.6.1941 | ||
| Otaria (ex-Espadarte) | CRDA, Monfalcone | 11.1932 | 20.3.1935 | 10.1935 | discarded 2.1948 |
|
Displacement standard, t |
977 |
|
Displacement normal, t |
1054 / 1305 |
|
Length, m |
73.0 |
|
Breadth, m |
7.20 |
|
Draught, m |
5.12 |
|
No of shafts |
2 |
|
Machinery |
2 Fiat diesels / 2 CRDA electric motors |
|
Power, h. p. |
3000 / 1200 |
|
Max speed, kts |
17 / 8 |
|
Fuel, t |
diesel oil 59 (norm.) |
| Endurance, nm(kts) | 9760(8) / 110(3) |
|
Armament |
2 x 1 - 100/47 OTO 1931, 2 x 1 - 13.2/76, 8 - 533 TT (4 bow, 4 stern, 14) |
| Electronic equipment | hydrophone |
|
Complement |
58 |
| Diving depth operational, m | 90 |
Project history: This pair was ordered by Portugal in 1931 as Delfim and Espadarte, but the same year the contract was cancelled. In 1932 they were re-ordered by Italian Government for own Navy. The design was developed on the basis of Squalo class. Single-hulled, with external bulges. Successful design, differed by easy manoeuvrability both in surface, and in underwater position, fast and well armed.
Modernizations: None.
Naval service: Otaria was badly damaged by DCs and gunfire of British destroyer Wishart and scuttled by own crew as unoperable 27.6.1941 W of Gibraltar.
Otaria 1940
