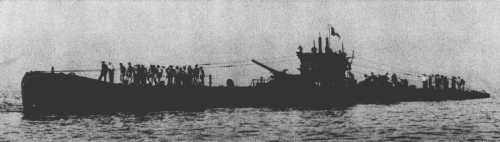

Fratelli Bandiera 1940
Ciro Menotti 1941
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Fratelli Bandiera | CNT, Monfalcone | 2.1928 | 7.8.1929 | 9.1930 | discarded 2.1948 | ||
| Luciano Manara | CNT, Monfalcone | 2.1928 | 5.10.1929 | 6.1930 | discarded 2.1948 | ||
| Ciro Menotti | OTO, Muggiano | 5.1928 | 29.12.1929 | 8.1930 | discarded 2.1948 | ||
| Santorre Santarosa | OTO, Muggiano | 5.1928 | 22.10.1929 | 7.1930 | scuttled 20.1.1943 |
|
Displacement standard, t |
858 - 866 |
|
Displacement normal, t |
925 / 1080 |
|
Length, m |
69.8 |
|
Breadth, m |
7.30 |
|
Draught, m |
5.26 |
|
No of shafts |
2 |
|
Machinery |
Fratelli Bandiera, Luciano Manara: 2 Tosi diesels / 2 Savigliano electric motors Ciro Menotti, Santorre Santarosa: 2 Fiat diesels / 2 Savigliano electric motors |
|
Power, h. p. |
3000 / 1300 |
|
Max speed, kts |
17.5 / 9 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 4750(8.5) / 60(4) |
|
Armament |
1 x 1 - 102/35 Schneider-Armstrong 1914-15, 2 x 1 - 13.2/76, 8 - 533 TT (4 bow, 4 stern, 12) |
| Electronic equipment | hydrophone |
|
Complement |
53 |
| Diving depth operational, m | 90 |
Project history: Increased Pisani with more powerful engines, two additional TTs and hardly higher endurance. Single-hulled. They had an insufficient stability, for its correction soon after completion submarines received external bulges which have lowered speed from 17.5/9 to 15/8kts. Then in a fore end on an extent about 5m aft from a stem the deck was lengthened for seaworthiness improvement.
In 1942 Luciano Manara (and, probably, others) has passed refit, in which course received smaller CT.
Modernizations: 1930 - 1931, all: bulges were fitted, max speed was 15 / 8 kts.
1942, Ciro Menotti: - 1 x 1 - 102/35; + 1 x 1 - 100/47 OTO 1938
Naval service: Santore Santarosa grounded near Tripoli 20.1.1943, torpedoed by British MTB260 and later scuttled.
Luciano Manara 1943
