Enrico Toti 1940
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Balilla | OTO, Muggiano | 1.1925 | 20.2.1927 | 7.1928 | hulk 4.1941 | ||
| Domenico Millelire | OTO, Muggiano | 1.1925 | 19.9.1927 | 8.1928 | hulk 4.1941 | ||
| Antonio Sciesa | OTO, Muggiano | 10.1925 | 12.8.1928 | 4.1929 | scuttled 12.11.1942 | ||
| Enrico Toti | OTO, Muggiano | 1.1925 | 14.4.1928 | 9.1928 | laid up 4.1943 |
|
Displacement standard, t |
1368 |
|
Displacement normal, t |
1427 / 1874 |
|
Length, m |
86.5 |
|
Breadth, m |
7.80 |
|
Draught, m |
4.70 |
|
No of shafts |
2 |
|
Machinery |
2 Fiat diesels + 1 auxiliary Fiat diesel / 2 Savigliano electric motors |
|
Power, h. p. |
4900 + 425 / 2200 |
|
Max speed, kts |
16 / 7 |
|
Fuel, t |
diesel oil 140 |
| Endurance, nm(kts) | 13000(7) / 110(3) |
|
Armament |
1 x 1 - 120/27 OTO 1924, 2 x 1 - 13.2/76, 6 - 533 TT (4 bow, 2 stern, 16), 4 mines Antonio Sciesa: 1 x 1 - 120/27 OTO 1924, 2 x 1 - 13.2/76, 6 - 533 TT (4 bow, 2 stern, 16) |
| Electronic equipment | presumably hydrophone |
|
Complement |
77 |
| Diving depth operational, m | 90 |
Project history: Cruiser submarines for service in Red sea and Indian ocean. Design was developed by builder on the basis of ex-German submarine U120, received by Italy after First World War. Double-hulled. For endurance increase auxiliary 425hp diesel was entered into machinery structure for battery recharging and cruising speed. Originally the gun was placed on CT. In 1934 for raise of stability the gun was moved from CT to a deck. To lacks of this class it is possible to refer low stability and inability to reach a designed speed (17.5/8.9kts).
Modernizations: 1934, all: - 1 x 1 - 120/27, 2 x 1 - 13.2/76; + 1 x 1 - 120/45 OTO 1931, 2 x 2 - 13.2/76
Naval service: Too large for service in Mediterranean sea Balilla and Domenico Millelire in April, 1941 were disarmed and used as oil hulks. Enrico Toti and Antonio Sciesa since 1942 served as transport submarines for supply of troops in Africa. Antonio Sciesa was damaged 6.9.1942 at Tobruk by American aircraft and scuttled by crew 12.11.1942. Enrico Toti was disarmed 1.4.1943.

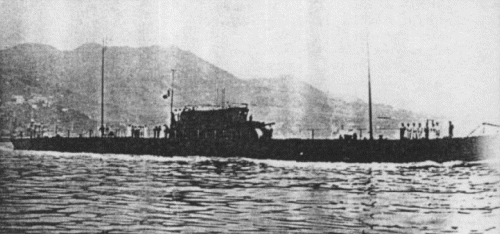

Domenico Millelire 1928
