A2 1918
|
Names |
A1-6 |
|
Builders |
R. Arsenale La Spezia: A1-6 |
|
Completed |
1915: A1 1916: A2-6 |
|
Losses |
None |
|
Transfers |
None |
|
Discarding |
9/1918: A1-6 |
|
Displacement standard, t |
|
|
Displacement normal, t |
31 / 37 |
|
Length, m |
13.5 pp |
|
Breadth, m |
2.22 |
|
Draught, m |
2.28 |
|
No of shafts |
1 |
|
Machinery |
1 electric motor |
|
Power, h. p. |
40 - 60 |
|
Max speed, kts |
6.8 / 5.1 |
|
Fuel, t |
battery only |
| Endurance, nm(kts) | 12(6.6) / 8.5(4.6) |
|
Armament |
2 - 450 TC (ext cages) |
|
Complement |
4 |
| Diving depth operational, m | 50 |
Project history: These very small boats, designed by Eng Vice Admiral Edgardo Ferrati and built at La Spezia N Yd, were conceived for the defence of some Adriatic harbours, such as Venice, Ancona, Brindisi. They were transportable by railway. They were not successful, had a very low endurance and their periscope was not retractable.
Modernizations: None.
Naval service: No significant events.

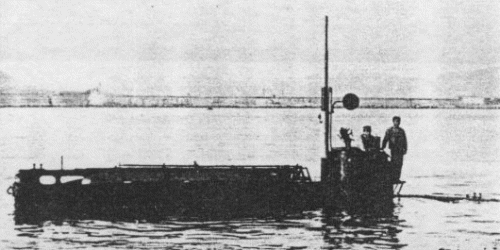

A5 1916
