similar Cariddi 1880
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Volturno | R. Arsenale di Venezia | 1885 | 23.12.1887 | 1889 | discarded 3.1914 | ||
| Curtatone | R. Arsenale di Venezia | 1886 | 14.8.1888 | 1890 | discarded 6.1913 |
|
Displacement normal, t |
Volturno: 1155 Curtatone: 1039 |
|
Displacement full, t |
1272 |
|
Length, m |
54.1 pp |
|
Breadth, m |
9.89 - 9.95 |
|
Draught, m |
4.53 |
|
No of shafts |
1 |
|
Machinery |
1 VC, 3 cylindrical boilers |
|
Power, h. p. |
Volturno: 1110 Curtatone: 1043 |
|
Max speed, kts |
Volturno: 11.4 Curtatone: 10.7 |
|
Fuel, t |
coal |
|
Endurance, nm(kts) |
|
|
Armament |
4 x 1 - 120/32 B(c.o.), 4 x 1 - 57/43 N, 2 x 1 - 37/20 H corto, 2 x 1 - 11.4/94, 1 - 350 TT (beam) |
|
Complement |
121 - 144 |
Project history: Barque-rigged vessels designed by Eng Insp Antenore Bozzoni.
Modernizations: 1900, both: - 2 x 1 - 37/20, 2 x 1 - 11.4/94
1905, Volturno: - 1 - 350 TT; + 2 x 1 - 37/25 H lungo, 2 x 1 - 6.5/115
1905, Curtatone: - 4 x 1 - 120/32, 1 - 350 TT; + 2 x 1 - 57/43 N, 2 x 1 - 37/25 H lungo, 2 x 1 - 6.5/115
Naval service: No significant events.

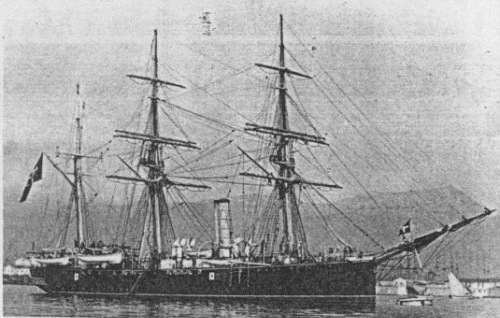

Curtatone
© Ivan Gogin, 2014
