Brondolo 1910
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Brondolo | Arsenale di Venezia | 1.1908 | 4.12.1909 | 12.1909 | minelayer 7.1921, discarded 7.1934 | ||
| Marghera (ex-Malghera) | Arsenale di Venezia | 1.1908 | 29.3.1909 | 7.1909 | minelayer 7.1921, discarded 9.1934 |
|
Displacement normal, t |
113 - 117 |
|
Displacement full, t |
|
|
Length, m |
38.1 |
|
Breadth, m |
6.32 |
|
Draught, m |
0.74 - 0.77 |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 1 boiler |
|
Power, h. p. |
500 |
|
Max speed, kts |
12.7 - 13 |
|
Fuel, t |
coal |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 76/40 A, mines |
|
Complement |
18 |
Project history: Coastal shallow-draught gunboats for actions in lagoons. Both were re-classified as minelayers in 1921.
Modernizations: None.
Naval service: No significant events.

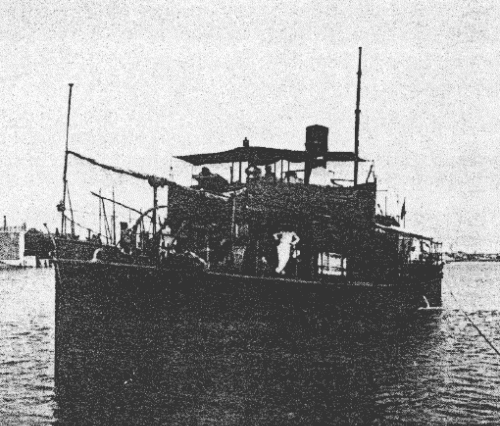

Marghera pre-war
