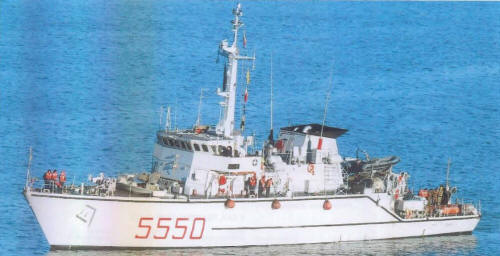

Lerici 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Lerici | M5550 | Intermarine, Sarzana | 6.6.1980 | 3.9.1982 | 22.3.1985 | discarded 9.2015 | |
| Sapri | M5551 | Intermarine, Sarzana | 11.4.1983 | 5.4.1984 | 4.6.1985 | discarded 9.2015 | |
| Milazzo | M5552 | Intermarine, Sarzana | 29.8.1983 | 4.1.1985 | 6.8.1985 | in service (2019) | |
| Vieste | M5553 | Intermarine, Sarzana | 30.1.1984 | 18.4.1985 | 2.12.1985 | in service (2019) |
|
Displacement standard, t |
485 |
|
Displacement full, t |
572 |
|
Length, m |
45.5 pp 50.0 oa |
|
Breadth, m |
9.56 |
|
Draught, m |
2.63 |
|
No of shafts |
1 |
|
Machinery |
1 GMT B230-8M diesel |
|
Power, h. p. |
1840 |
|
Max speed, kts |
15 |
|
Fuel, t |
diesel oil 49 |
| Endurance, nm(kts) | 2500(12) |
|
Armament |
1 x 1 - 20/70 Mk 4, MIN-77 SSV, Pluto SSV, mechanical minesweeping gear, decompression chamber |
|
Electronic equipment |
SPN-703 radar, SQQ-14T sonar |
|
Complement |
48 |
Project history: These ships were ordered In April 1978. Each minehunter supports up to seven divers, as well as MIN-77 and a Pluto remote controlled submersible. All four extant 1995.
Modernizations: early 1990s, all: - SQQ-14 sonar; + SQQ-14IT sonar with type 2048 side-scan mapping
2000s, all: - MIN-77 USV, SPN-703 radar; + MIN Mk 1 USV, SPN-753 radar
Naval service: No significant events.
Lerici 2008
