Pietro de Cristofaro 1979
Pietro de Cristofaro 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Pietro de Cristofaro | F540 | CNR, Riva Trigoso | 30.4.1963 | 29.5.1965 | 19.12.1965 | stricken 1994 | |
| Umberto Grosso | F541 | Ansaldo, Livorno | 21.10.1962 | 12.12.1964 | 25.4.1966 | stricken 1994 | |
| Licio Visintini | F546 | CRDA, Monfalcone | 30.9.1963 | 30.5.1965 | 25.8.1966 | stricken 1994 | |
| Salvatore Todaro | F550 | Ansaldo, Livorno | 21.10.1962 | 24.10.1964 | 25.4.1966 | stricken 1994 |
|
Displacement standard, t |
850 |
|
Displacement full, t |
1020 |
|
Length, m |
75.0 pp 80.2 oa |
|
Breadth, m |
10.0 |
|
Draught, m |
2.50 |
|
No of shafts |
2 |
|
Machinery |
2 Fiat 3012RSS diesels |
|
Power, h. p. |
8400 |
|
Max speed, kts |
23 |
|
Fuel, t |
diesel oil 100 |
| Endurance, nm(kts) |
4000(16) |
|
Armament |
2 x 1 - 76/62 MMI, 2 x 3 - 324 TT, 1 x 1 - 305 Menon ASWRL |
|
Electronic equipment |
SPQ-2, RTN-10 radars, SQS-36, SQS-36 VDS sonars |
| Complement |
131 |
Project history: For the first time in postwar Italian practice, these ships were given a forecastle. They also had a transom stern, a departure from previous practice. As in the somewhat later Alpinos, they had a VDS, in their case a separate SQS-36 handled by a crane mounted on deck. There was also a medium-frequency hull sonar, reportedly a separate SQS-36. The 76mm gun was the successful OTO-Melara type, controlled by an OG 3 director (Orion RTN-7X radar), with an optical director (probably OG 1) aft. The single-barrel Menon mortar was mounted aft, in 'X' position.
Modernizations: early 1980s, all: + BX-732 radar
1989, all as patrols ships: - 2 x 3 - 324 TT, 1 x 1 - 305 Menon ASWRL, SQS-36, SQS-36 VDS sonars
Naval service: No significant events.

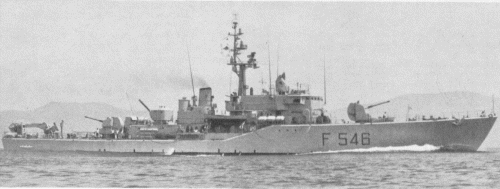

Licio Visintini 1975
