Larne 1943
Alabarda 1963
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Ammiraglio Magnaghi (ex-Larne), 1948- Eritrea, 4.1950- Alabarda | AL, 1953- F560 | Lobnitz, Renfrew, UK | 1.1943 | 20.9.1943 | 11.1943 // 6.1946 | stricken 7.1968 |
|
Displacement standard, t |
990 |
|
Displacement full, t |
1258 |
|
Length, m |
68.6 |
|
Breadth, m |
10.8 |
|
Draught, m |
3.13 deep load |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 2 Admiralty 3-drum boilers |
|
Power, h. p. |
2400 |
|
Max speed, kts |
16.5 |
|
Fuel, t |
oil 230 |
| Endurance, nm(kts) | 5000(10) |
|
Armament |
1 x 1 - 100/47 OTO 1937, 4 x 1 - 37/54 Breda 1939, 4 DCT, 2 DCR (90 - 92 in ASW role) |
| Electronic equipment | type 271 or type 272 radar, type 128 sonar |
|
Complement |
85 - 138 |
Project history: Ex-British minesweeper of Algerine class. Primarily she was taken as survey vessel Ammiraglio Magnaghi but soon reclassified as colonial corvette (in June 1946) and ASW corvette (in April 1950).
Modernizations: 1954: - 4 x 1 - 37/54, radar; + 1 x 2 - 40/60 Mk 1, 2 x 1 - 40/60 Mk 3, SO-13 radar.
1956: - 1 x 1 - 100/47, 1 DCR
Naval service: No significant events.

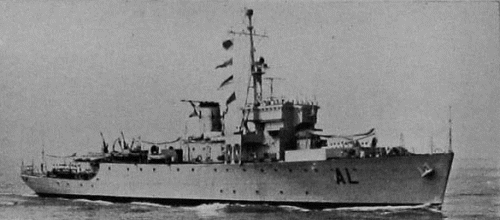

Alabarda 1952
