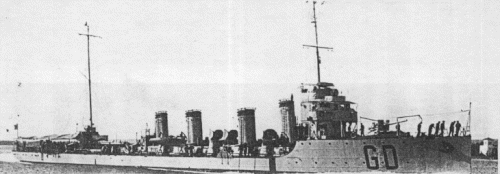

Grado 1920
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Fasana class | |||||||
| Fasana (ex-Tátra) | Danubius, Porto Rè, Austria-Hungary | 10.1911 | 5.11.1912 | 10.1913 // 9.1920 | stricken 7.1923 | ||
| Muggia (ex-Csepel) | MG | Danubius, Porto Rè, Austria-Hungary | 1.1912 | 30.12.1912 | 12.1913 // 9.1920 | wrecked 25.3.1929 | |
| Pola (ex-Orjen), 4.1931- Zenson | PA, ZS | Danubius, Porto Rè, Austria-Hungary | 9.1912 | 26.8.1913 | 7.1914 // 9.1920 | stricken 5.1937 | |
| Zenson (ex-Balaton) | ZS | Danubius, Porto Rè, Austria-Hungary | 11.1911 | 16.11.1912 | 11.1913 // 9.1920 | stricken 7.1923 | |
| Grado class | |||||||
| Cortelazzo (ex-Lika) | CZ | Danubius, Porto Rè, Austria-Hungary | 8.1916 | 8.5.1917 | 9.1917 // 9.1920 | stricken 1.1939 | |
| Grado (ex-Triglav) | GD | Danubius, Porto Rè, Austria-Hungary | 8.1916 | 24.2.1917 | 7.1917 // 9.1920 | stricken 9.1937 | |
| Monfalcone (ex-Uzsok) | MF | Danubius, Porto Rè, Austria-Hungary | 9.1916 | 16.9.1917 | 1.1918 // 9.1920 | stricken 1.1939 | |
|
Displacement normal, t |
Fasana class: 850 Grado class: 880 |
|
Displacement full, t |
Fasana class: 1000 Grado class: 1045 |
|
Length, m |
Fasana class: 83.5 oa Grado class: 84.6 wl 85.4 oa |
|
Breadth, m |
7.80 |
|
Draught, m |
Fasana class: 3.00 deep load (by propellers) Grado class: 2.40 deep load (by hull) |
|
No of shafts |
2 |
|
Machinery |
2 AEG-Curtiss steam turbines, 6 Yarrow boilers |
|
Power, h. p. |
Fasana class: 20640 Grado class: 22360 |
|
Max speed, kts |
32.6 |
|
Fuel, t |
coal 131 + oil |
| Endurance, nm(kts) | 1600(12) |
|
Armament |
Fasana class: 2 x 1 - 100/47 G. L/50 K.10, 6 x 1 - 66/42 G. L/45 BAG, 2 x 2 - 450 TT Grado class: 2 x 1 - 100/47 G. L/50 K.10, 6 x 1 - 66/42 G. L/45 BAG, 1 x 1 - 8.80, 2 x 2 - 450 TT |
|
Complement |
Fasana class: 105 Grado class: 114 |
Project history: Ex-Austrian destroyers transferred by war reparations. Fasana and Zenson were not refitted for commission of Italian navy. All survived were reclassified as torpedo boats in October 1929.
Modernizations: 1920 - 1922, before commission all were armed with 2 x 1 - 100/47 G. L/50 K.10, 6 x 1 - 66/42 G. L/45 BAG, 2 x 1 - 6.5/80, 2 x 2 - 450 TT
Naval service: No significant events.
Grado 1932
