Curtatone 1940
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Calatafimi | CM | Orlando, Livorno | 12.1920 | 17.3.1923 | 5.1924 | captured by Germany 9.9.1943 (TA19) | |
| Castelfidardo | CD | Orlando, Livorno | 7.1920 | 4.6.1922 | 3.1924 | captured by Germany 9.9.1943 (TA16) | |
| Curtatone | CT | Orlando, Livorno | 1.1920 | 17.3.1922 | 6.1923 | sunk 20.5.1941 | |
| Monzambano | MB | Orlando, Livorno | 1.1921 | 6.8.1923 | 6.1924 | stricken 4.1951 |
|
Displacement standard, t |
953 |
|
Displacement full, t |
1214 |
|
Length, m |
84.6 wl 84.7 oa |
|
Breadth, m |
8.00 |
|
Draught, m |
2.90 normal 3.00 full load |
|
No of shafts |
2 |
|
Machinery |
2 Zoelly steam turbines, 4 Thornycroft boilers |
|
Power, h. p. |
22000 |
|
Max speed, kts |
32 |
|
Fuel, t |
oil 206 |
| Endurance, nm(kts) | 1800(15) |
|
Armament |
2 x 2 - 102/45 Schneider-Armstrong 1919, 2 x 1 - 76/30 Armstrong 1914, 2 x 3 - 450 TT, 16 mines |
|
Complement |
117 |
Project history: 4 ships of Curtatone class have been ordered in 1915 and originally belonged to Palestro class, but their building was suspended till an end of the war. The laying down was happened only in 1920 under the changed design in which, in comparison with a prototype, have brought a number of the innovations, concerning armament structure and arrangement. Curtatone class ships became the first Italian destroyers with all armament placed at centre line. For the first time in the European practice 102mm guns were installed in twin mounts. Besides, these ships received triple TTs instead of twin.
In 1938 they were re-rated as torpedo boats.
Modernizations: 1939 - 1940, all: - 2 x 1 - 76/30; + 2 x 1 - 20/70 Scotti-Isotta Fraschini 1939, 2 x 1 - 8.80
1942 - 1943, Castelfidardo: + 1 x 2 - 20/65 Breda 1935
1942 - 1943, Calatafimi: - 1 x 2 - 102/45, 2 x 3 - 450 TT; + 1 x 1 - 102/45 Schneider-Armstrong 1917, 2 x 2 - 20/65 Breda 1935, 1 x 2 - 533 TT
1942 - 1943, Monzambano: - 1 x 2 - 102/45; + 1 x 1 - 102/45 Schneider-Armstrong 1917, 2 x 2 - 20/65 Breda 1935
1946 - 1947, Monzambano: - 1 x 1 - 102/45, 2 x 1 - 20/70, 2 x 1 - 8.80, 2 x 3 - 450 TT; + 1 x 2 - 20/65 Breda 1935, 1 x 2 - 533 TT, radar
Naval service: Curtatone 20.5.1941 was sunk by on Greek mines at Piraeus. Castelfidardo 9.9.1943 was captured by German troops at Suda, renamed TA16 and lost during British air raid 1.6.1944. Calatafimi 9.9.1943 was captured by German troops at Piraeus, renamed TA19 and 9.8.1944 was sunk by Greek submarine Pipinos at Samos.

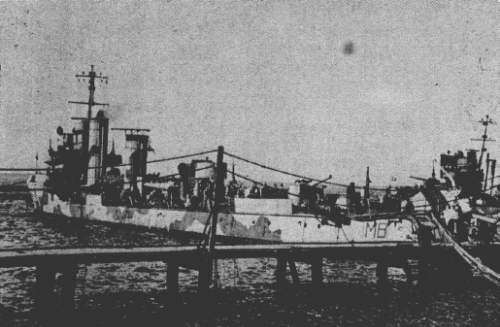

Monzambano 1943
© Ivan Gogin, 2009-15
