REGIA MARINA (ITALY)

TORPEDO SHIPS

"Soldati", 1st (ARTIGLIERE) group destroyers (1907-1910)

Artigliere 1910

Name No Yard No Builder Laid down Launched Comp Fate
Artigliere AR   Ansaldo, Genova 7.1905 18.1.1907 9.1907 stricken 6.1923
Bersagliere BG   Ansaldo, Genova 7.1905 2.10.1906 4.1907 stricken 7.1923
Corazziere     Ansaldo, Genova 10.1905 11.12.1909 5.1910 stricken 6.1928
Garibaldino     Ansaldo, Genova 10.1905 12.2.1910 6.1910 collision 16.7.1918
Granatiere GR   Ansaldo, Genova 7.1905 27.10.1906 4.1907 stricken 11.1927
Lanciere     Ansaldo, Genova 7.1905 28.2.1907 8.1907 stricken 3.1923



Displacement normal, t

395

Displacement full, t

412

Length, m

64.4 wl 65.0 oa

Breadth, m

6.10

Draught, m

2.10

No of shafts

2

Machinery

2 VTE, 3 Thornycroft boilers

Power, h. p.

6000

Max speed, kts

28.5

Fuel, t

coal 90

Endurance, nm(kts) 1500(12)

Armament

4 x 1 - 76/40 A, 3 x 1 - 450 TT, 10 mines

Complement

55

Project history: Last series of British-origin "destroyers" successors, in essence large torpedo boats.

Modernizations: None.

Naval service: Garibaldino was lost 16.7.1918 as a result of collision with British destroyer Cygnet. All were reclassified as torpedo boats in July 1921.

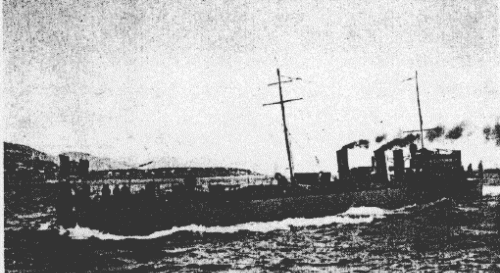

Granatiere
