Coatit 1900
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Agordat | R. Cantiere di Castellamare di Stabia | 18.2.1897 | 11.10.1899 | 26.9.1900 | minelayer 1919, discarded 1.1923 | ||
| Coatit | R. Cantiere di Castellamare di Stabia | 8.4.1897 | 15.11.1899 | 1.10.1900 | discarded 6.1920 |
|
Displacement normal, t |
Agordat: 1340 Coatit: 1292 |
|
Displacement full, t |
|
|
Length, m |
87.6 pp 91.6 oa |
|
Breadth, m |
9.32 |
|
Draught, m |
Agordat: 3.64 Coatit: 3.54 |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 8 Blechynden boilers |
|
Power, h. p. |
Agordat: 7500 Coatit: 8000 |
|
Max speed, kts |
Agordat: 22 (trials 23) Coatit: 22.5 (trials 23) |
|
Fuel, t |
coal 160 |
| Endurance, nm(kts) | 3000(10) |
|
Armour, mm |
steel; deck: 20 |
|
Armament |
12 x 1 - 76/40 A, 2 x 1 - 450 TT |
|
Complement |
153 - 185 |
Project history: Originally these ships were rated as protected cruisers, 4.6.1914 re-rated as scouts (esploratori). To the beginning of WWI they become outdated and could make no more than 20kts. Soon after Armistice Coatit became minelayer, and Agordat was re-rated as gunboat.
Ship protection: Only protective 20mm deck.
Modernizations: 1919, Coatit: - 8 x 1 - 76/40, 2 x 1 - 450 TT; + 2 x 1 - 120/40 A1891, mines
1921, Agordat: - 4 x 1 - 76/40, 2 x 1 - 450 TT; + 2 x 1 - 120/40 A1891
Naval service: No significant events.

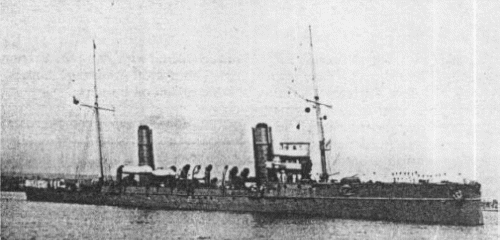

Coatit
