sister-boat 99S 1887
|
Names |
56S, 1.1894- 80S 86S - 92S 124S - 127S 139S - 144S |
|
Builders |
Ansaldo, Genova: 56S, 86S - 92S, 124S - 127S, 139S - 144S |
|
Completed |
1888 - 1893: 56S, 86S - 92S, 124S - 127S, 139S - 144S |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
1907 - 1915: 56S, 86S - 92S, 124S - 127S, 139S - 144S |
|
Displacement normal, t |
78 |
|
Displacement full, t |
|
|
Length, m |
39.0 pp 39.8 oa |
|
Breadth, m |
4.80 |
|
Draught, m |
2.01 |
|
No of shafts |
1 |
|
Machinery |
1 VDE, 1 locomotive boiler |
|
Power, h. p. |
782 - 1079 |
|
Max speed, kts |
21 - 22 |
|
Fuel, t |
coal |
| Endurance, nm(kts) | |
|
Armament |
56S, 86S - 92S: 2 x 1 - 37/20 H corto, 2 - 350 TT (bow) 124S - 127S, 139S - 144S: 2 x 1 - 37/25 H lungo, 1 - 350 TT (bow), 1 x 1 - 350 TT |
|
Complement |
17 |
Project history: Second class TBs.
Modernizations: 1890s, 91S, 124S, 125S, 139S: were converted for oil fuel
Naval service: 87S sank after collision with battleship Terribile 11.6.1894 in La Spezia Bay but was refloated next day and commissioned again.

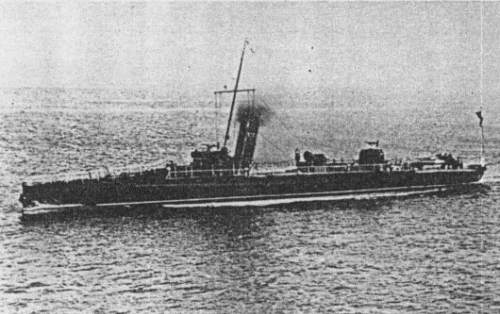

144S 1893
